J&D Electronics

JSC series

JSC series

Regular price $0.00USD
Regular price Sale price $0.00USD
Sale Sold out
Shipping calculated at checkout.
TYPE

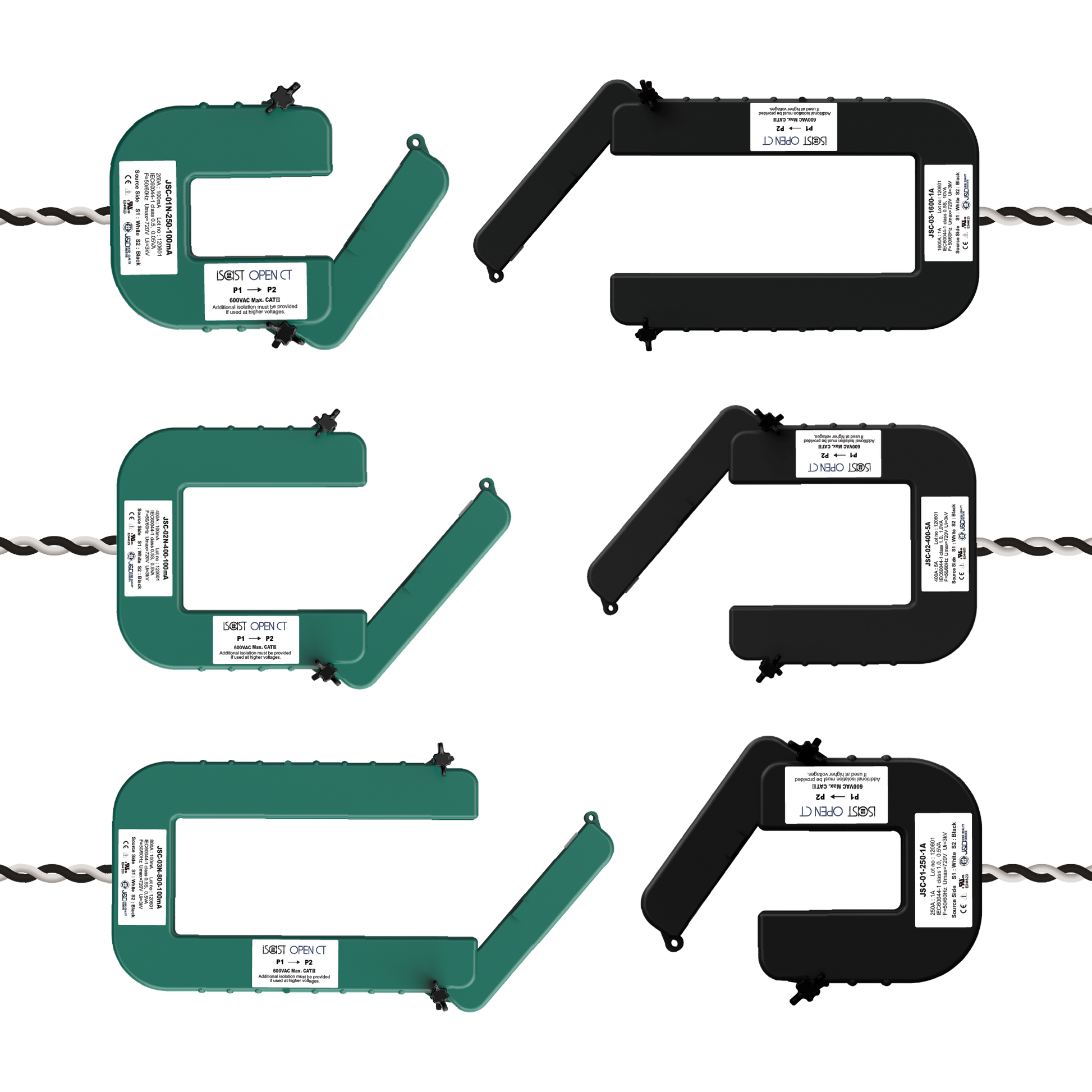

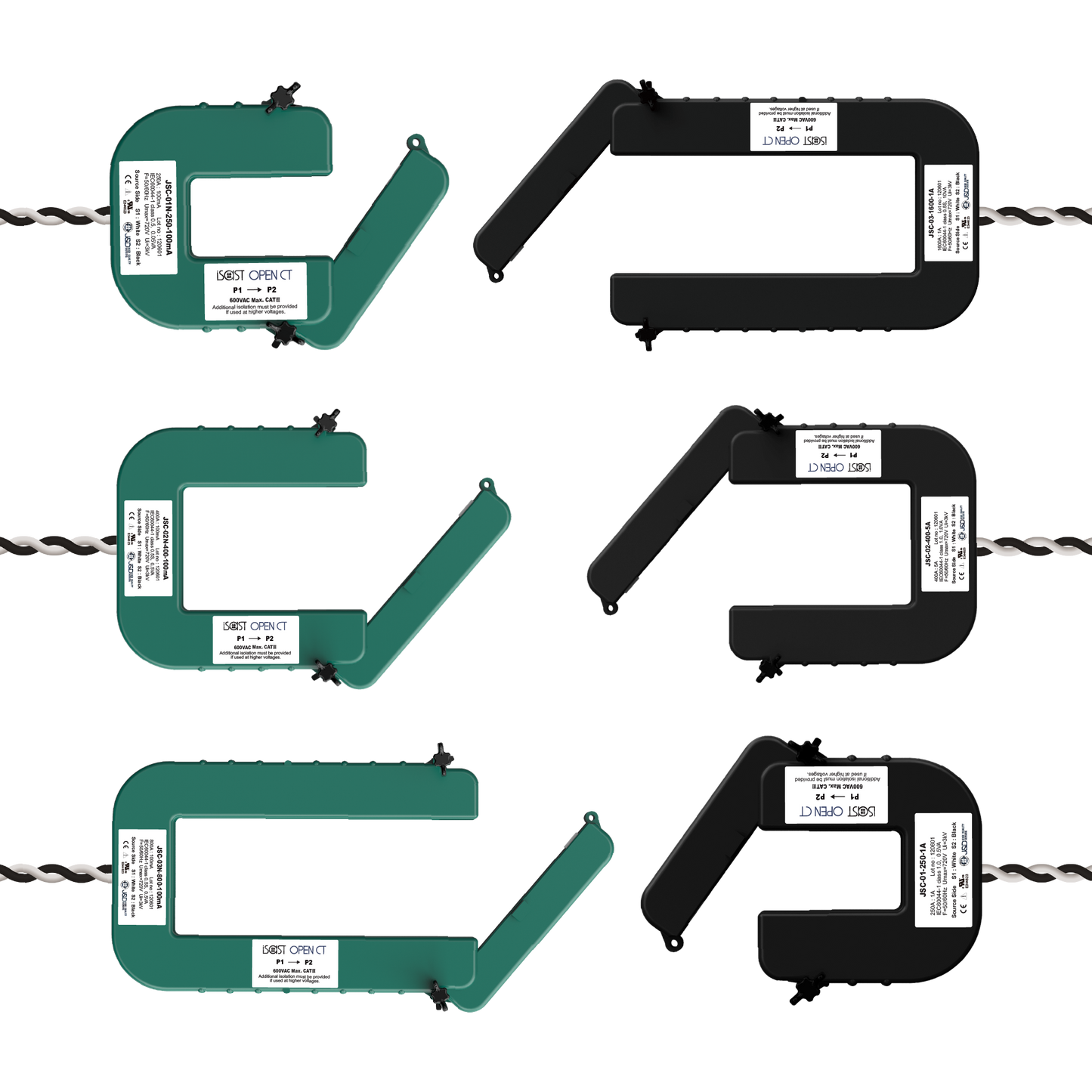

JSC series of split-core current transformer offers 100mA /333mV / 1A / 5A at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect JSC series to a meter for high accuracy metering application.
It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact design meter and reduces developing cost.
Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.

FEATURES
- CE
- UL Listed UL2808 (XOBA) : Pollution Degree: 3 CAT IV, 600 Vac
- UL/EN61010-1(PICQ) : Pollution Degree: 3 CAT IV, 600 Vac
- RoHs Compliant

DOWNLOAD

: JSC01/N

JSC-01-XXX-100mA (PDF)
JSC-01-XXX-333mV (PDF)
JSC-01-XXX-1A (PDF)
JSC-01-XXX-5A (PDF)
JSC-01N-XXX-100mA (PDF)
JSC-01N-XXX-333mV (PDF)
: JSC02/N
JSC-02-XXX-100mA (PDF)
JSC-02-XXX-333mV (PDF)
JSC-02-XXX-1A (PDF)
JSC-02-XXX-5A (PDF)
JSC-02N-XXX-100mA (PDF)
JSC-02N-XXX-333mV (PDF)
: JSC03/N
JSC-03-XXX-100mA (PDF)
JSC-03-XXX-333mV (PDF)
JSC-03-XXX-1A (PDF)
JSC-03-XXX-5A (PDF)
JSC-03N-XXX-100mA (PDF)
JSC-03N-XXX-333mV (PDF)
