JCXXF/S series

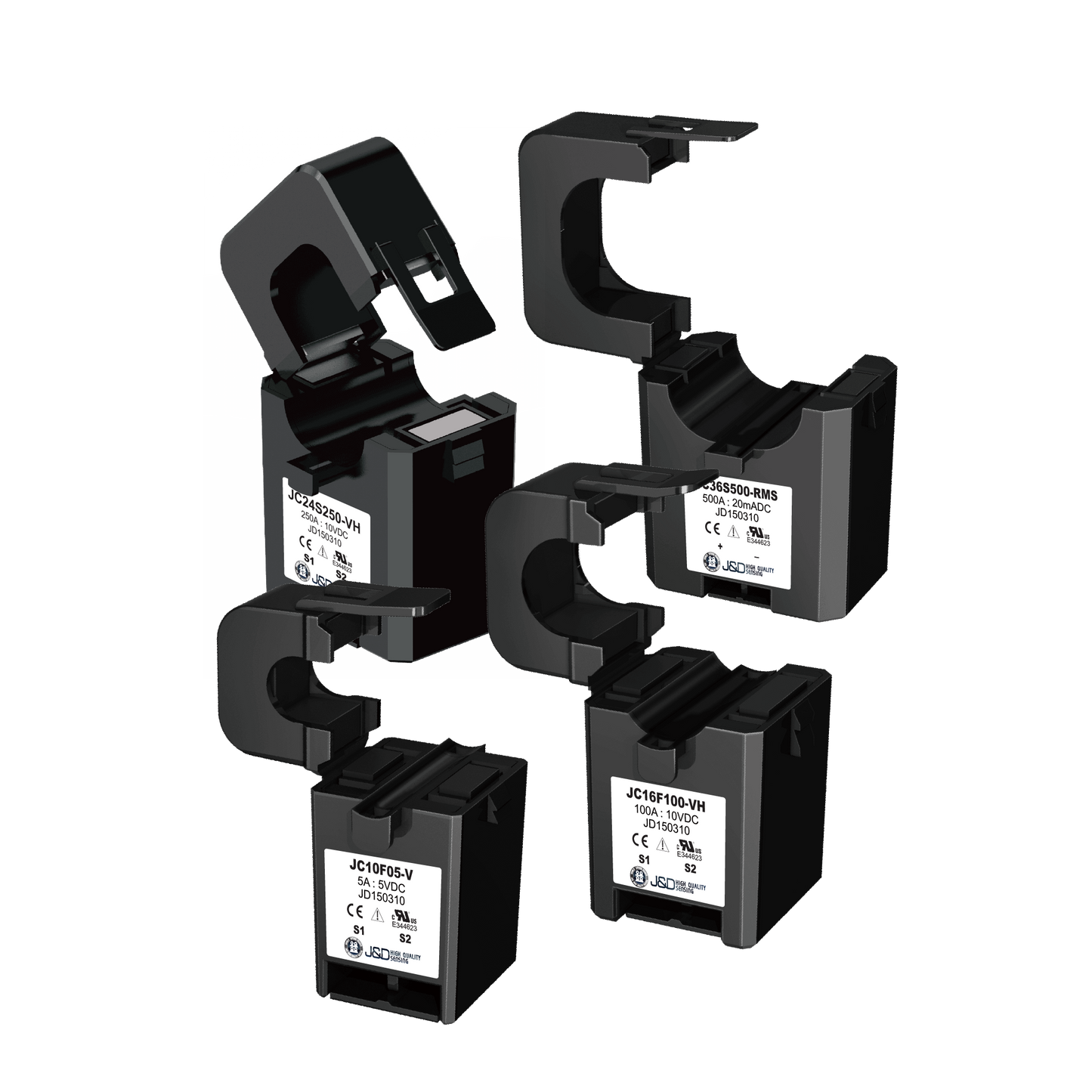

The JCxxF / S series is a split core current transducer for electronic measurement of AC waveform current with galvanic separation between the primary AC current circuit and the secondary 0-5VDC / 0-10VDC / 4-20mADC output circuit.

FEATURES
- RMS output
- Loop-powered 0-5VDC / 0-10VDC / 4-20mADC current output
- 36 mm sensing aperture for non-contact measurement
- Nylon-spring, output-terminal, secure locking hinge, one-touch structure make it easy to install to the existent equipment such as a power distribution board
- Isolated plastic case recognized according to UL94-V0
- UL/EN 61010-1 certified
