J&D Electronics
IoT AC Current Sensors : IACT16I
IoT AC Current Sensors : IACT16I
Regular price
$38.00USD
Regular price
Sale price
$38.00USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
**For large orders, the delivery time is about 10 days.
**Our shipping date is Every Thursday
FEATURES

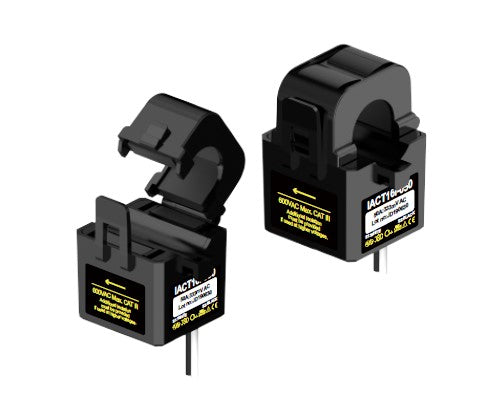

IACT16I is a split core current transformer for the electronic measurement of AC waveform current with galvanic separation between the primary current and the secondary output voltage. IACT16I is an ideal CTid built-in split-core current transformer for Sensway IoT meters, and its ratio error and phase displacement are fully tested with IEC 61869-2 standards accuracy Class 1.0 and IEEE/ANSI C57.13 Class 1.2.
And we offer rated current 50A, 100A.
If you need more details, please check the data sheet.
DOWNLOAD
Data sheet : IACT16I
**Our shipping date is Every Thursday
FEATURES
IACT16I is a split core current transformer for the electronic measurement of AC waveform current with galvanic separation between the primary current and the secondary output voltage. IACT16I is an ideal CTid built-in split-core current transformer for Sensway IoT meters, and its ratio error and phase displacement are fully tested with IEC 61869-2 standards accuracy Class 1.0 and IEEE/ANSI C57.13 Class 1.2.
And we offer rated current 50A, 100A.
If you need more details, please check the data sheet.
DOWNLOAD
Data sheet : IACT16I
